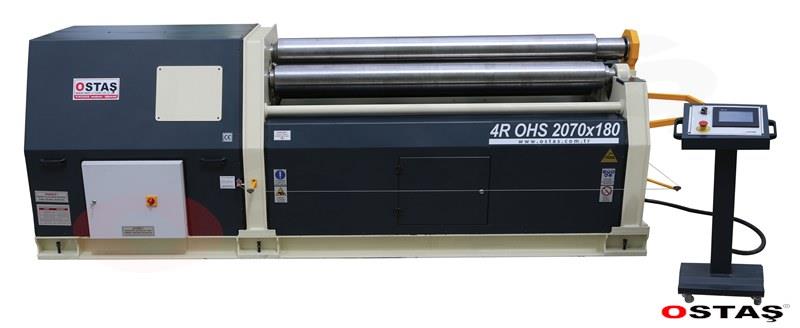

4 Toplu Hidrolik Silindir Makineleri - 4R OHS
| MODEL | Çalışma Boyu | Ön Kıvırma Kapasitesi Min.Çap=Üst Top Øx1,5 | Kıvırma Kapasitesi Min.Çap=Üst Top Ø x 3 | Üst ve Alt Top Çapları Ø | Yan Top Çapları Ø | Motor.Gücü | Uzunluk | Genişlik | Yükseklik | Ağırlık |
| mm | mm | mm | mm | mm | Kw | mm | mm | mm | kg | |
| 4R OHS 1570X140 | 1570 | 3 | 5 | 140 | 130 | 1,5 / 1,5 | 3200 | 1100 | 1100 | 2350 |
| 4R OHS 1570X160 | 1570 | 4 | 6 | 160 | 140 | 2,2 / 1,5 | 3200 | 1100 | 1100 | 2500 |
| 4R OHS 1570X180 | 1570 | 6 | 8 | 180 | 150 | 3,0 / 1,5 | 3250 | 1300 | 1300 | 3000 |
| 4R OHS 1570X200 | 1570 | 8 | 10 | 200 | 180 | 4,0 / 1,5 | 3250 | 1300 | 1300 | 3350 |
| 4R OHS 1570X220 | 1570 | 10 | 12 | 220 | 180 | 5,5 / 1,5 | 3450 | 1450 | 1350 | 4500 |
| 4R OHS 1570X250 | 1570 | 12 | 16 | 250 | 200 | 7,5 /1,5 | 3450 | 1450 | 1350 | 4800 |
| 4R OHS 2070X160 | 2070 | 4 | 6 | 160 | 140 | 2,2 / 1,5 | 3700 | 1100 | 1100 | 2950 |
| 4R OHS 2070X180 | 2070 | 5 | 7 | 180 | 150 | 3,0 / 1,5 | 3750 | 1300 | 1300 | 3500 |
| 4R OHS 2070X200 | 2070 | 6 | 8 | 200 | 180 | 4,0 / 1,5 | 3750 | 1300 | 1300 | 3800 |
| 4R OHS 2070X220 | 2070 | 8 | 10 | 220 | 180 | 5,5 / 1,5 | 3950 | 1450 | 1350 | 5100 |
| 4R OHS 2070X250 | 2070 | 10 | 13 | 250 | 200 | 7,5 /1,5 | 3950 | 1450 | 1350 | 5500 |
| 4R OHS 2070X275 | 2070 | 13 | 16 | 275 | 220 | 11 | 4500 | 1600 | 1800 | 6200 |
| 4R OHS 2070X300 | 2070 | 16 | 20 | 300 | 250 | 11 | 4500 | 1750 | 2000 | 6700 |
| 4R OHS 2070X320 | 2070 | 20 | 25 | 320 | 260 | 15 | 4650 | 1850 | 2100 | 7700 |
| 4R OHS 2070X350 | 2070 | 25 | 30 | 350 | 280 | 20 | 4750 | 1850 | 2150 | 11200 |
| 4R OHS 2070X380 | 2070 | 30 | 35 | 380 | 300 | 30 | 4750 | 1950 | 2250 | 14500 |
| 4R OHS 2070X400 | 2070 | 35 | 40 | 400 | 320 | 31,5 | 4750 | 1950 | 2250 | 16500 |
| 4R OHS 2570X160 | 2570 | 2 | 4 | 160 | 140 | 2,2 / 1,5 | 4200 | 1100 | 1100 | 3350 |
| 4R OHS 2570X180 | 2570 | 4 | 6 | 180 | 150 | 3,0 / 1,5 | 4250 | 1300 | 1300 | 3850 |
| 4R OHS 2570X200 | 2570 | 5 | 7 | 200 | 180 | 4,0 / 1,5 | 4250 | 1300 | 1300 | 4350 |
| 4R OHS 2570X220 | 2570 | 6 | 8 | 220 | 180 | 5,5 / 1,5 | 4450 | 1450 | 1350 | 5550 |
| 4R OHS 2570X250 | 2570 | 8 | 10 | 250 | 200 | 7,5 / 1,5 | 4450 | 1450 | 1350 | 6200 |
| 4R OHS 2570X275 | 2570 | 10 | 13 | 275 | 220 | 11 | 5000 | 1600 | 1800 | 7000 |
| 4R OHS 2570X300 | 2570 | 13 | 16 | 300 | 250 | 11 | 5000 | 1750 | 2000 | 7850 |
| 4R OHS 2570X320 | 2570 | 16 | 20 | 320 | 260 | 15 | 5150 | 1850 | 2150 | 9200 |
| 4R OHS 2570X350 | 2570 | 20 | 25 | 350 | 280 | 20 | 5250 | 1850 | 2150 | 12500 |
| 4R OHS 2570X380 | 2570 | 25 | 30 | 380 | 300 | 30 | 5250 | 1950 | 2250 | 15800 |
| 4R OHS 2570X400 | 2570 | 30 | 35 | 400 | 320 | 31,5 | 5250 | 1950 | 2250 | 17300 |
| 4R OHS 3070X180 | 3070 | 2 | 4 | 180 | 150 | 3,0 / 1,5 | 4750 | 1300 | 1300 | 4200 |
| 4R OHS 3070X200 | 3070 | 4 | 6 | 200 | 180 | 4,0 / 1,5 | 4750 | 1300 | 1300 | 4850 |
| 4R OHS 3070X220 | 3070 | 5 | 7 | 220 | 180 | 5,5 / 1,5 | 4950 | 1450 | 1350 | 6200 |
| 4R OHS 3070X250 | 3070 | 6 | 8 | 250 | 200 | 7,5 / 1,5 | 4950 | 1450 | 1350 | 7000 |
| 4R OHS 3070X275 | 3070 | 8 | 10 | 275 | 220 | 11 | 5500 | 1600 | 1800 | 7650 |
| 4R OHS 3070X300 | 3070 | 10 | 13 | 300 | 250 | 11 | 5500 | 1750 | 2000 | 8650 |
| 4R OHS 3070X320 | 3070 | 13 | 16 | 320 | 260 | 15 | 5650 | 1850 | 2150 | 10200 |
| 4R OHS 3070X350 | 3070 | 16 | 20 | 350 | 280 | 20 | 5750 | 1850 | 2200 | 12500 |
| 4R OHS 3070X380 | 3070 | 20 | 25 | 380 | 300 | 30 | 5750 | 2000 | 2300 | 16500 |
| 4R OHS 3070X400 | 3070 | 25 | 30 | 400 | 320 | 31,5 | 5750 | 2000 | 2300 | 18500 |
| 4R OHS 4070X300 | 4070 | 6 | 8 | 300 | 250 | 11 | 6650 | 1850 | 2000 | 9750 |
| 4R OHS 4070X320 | 4070 | 8 | 10 | 320 | 260 | 15 | 6650 | 1900 | 2200 | 13500 |
| 4R OHS 4070X350 | 4070 | 10 | 13 | 350 | 280 | 20 | 6750 | 1900 | 2350 | 15200 |
| 4R OHS 4070X380 | 4070 | 13 | 16 | 380 | 300 | 30 | 6750 | 2200 | 2350 | 19500 |
| 4R OHS 4070X400 | 4070 | 16 | 20 | 400 | 320 | 31,5 | 6800 | 2200 | 2400 | 24500 |
